Stainless steel high pressure three-way ferrule ball valve

2021-12-06 03:05:12 来源:本站


Product Name: stainless steel high pressure three-way ferrule ball valve

Product model: Q95N

Structural features: three end ferrule type

Product material: stainless steel 304 / 316

Thread standard: G, NPT, BSPT, BSP, DIN

Ferrule size:Ф6、Φ8、Ф10、Φ12、Ф14、Φ16、Ф18、Φ20、Ф22

Product pressure: ≤ 6.4 MPa

Operating temperature: ≤ 120 ℃

Medium used: water, oil, weak corrosive medium, etc

Handle material: WCB

Handle color: WCB silver plated gray

Product Description:

Ferrule three-way ball valve is used for medium flow direction switching. One inlet can be switched to two outlets through the three-way ball valve. Ferrule three-way ball valve is suitable for controlling the opening and closing device to connect or cut off the pipeline medium under various pressures, temperatures and media of medium and small diameter pipelines; The ball is pressed on the valve seat at the outlet end by medium pressure, and its service pressure and diameter are limited to a certain extent. 90 ° transmission is adopted, so the switch is convenient and fast, and can be opened and closed quickly.

Working principle of stainless steel high-pressure three-way ferrule ball valve: the stainless steel high-pressure three-way ferrule ball valve is divided into L-type and T-type. L-type is applicable to the switching of medium flow direction and can connect two channels perpendicular to each other. T-type three-way ball valve is suitable for medium diversion, confluence or flow direction switching. T-type channel can connect three channels or two channels. Internal thread three-way ball valve generally adopts two seat structure, or four seat structure according to user requirements.

Features of stainless steel high pressure three-way ferrule ball valve:

1. Compact structure, quick opening and closing, smooth flow channel and small fluid resistance.

2. Good sealing performance: use four side valve seat materials Teflon, imported nylon and MTU elastic deformation to realize leak free sealing.

3. One valve multi-purpose: any port can be used as the inlet without leakage. The tee can be made into either L-shaped port or T-shaped port.

4. Convenient maintenance: after the system is depressurized, the inspection and maintenance can be carried out without removing the whole valve body.

5. Pneumatic or electric devices can be installed.

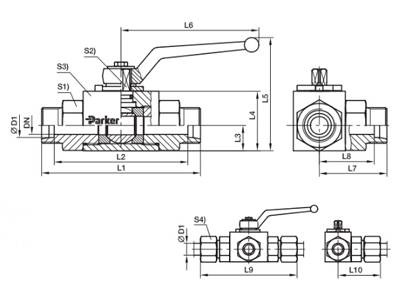

Structural drawing of q95n stainless steel high pressure three-way ferrule ball valve:


Q95n stainless steel high pressure three-way ferrule ball valve parts material:

Part NameStainless steelCarbon steel
NutSS304 SS304L SS316 SS316L SS32120# A105
Dual card combinationSS304 SS304L SS316 SS316L SS32120# A105
Valve bodySS304 SS304L SS316 SS316L SS32120# A105
Valve seatPTFEPTFE
NutSS304 SS304L SS316 SS316L SS32120# A105
ballSS304 SS304L SS316 SS316L SS32120# A105
StemSS304 SS304L SS316 SS316L SS32120# A105
Stem packingPTFEPTFE
Hex screwSS304 SS304L SS316 SS316L SS32120# A105
handleWCBSilver-plated greyWCBSilver-plated grey
